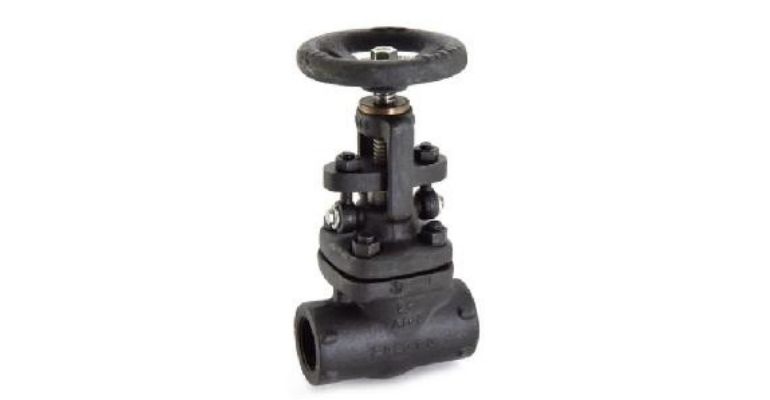

Forged steel gate valves feature bolted bonnet and welded bonnet designs, with an
outside screw and yoke type and a rising stem. Premium forgings are used for the
body and bonnet in our forged valves.We offer Forged Steel Gate Valves in sizes
ranging from 1/2" (DN15) to 2" (DN50), with pressure ratings from 150 to 2500
LB, suitable for both critical and non-critical applications. The manufacturing
range includes Regular Port and Standard Port valve types.Forged Steel Gate
Valves can be procured with third-party examination. Stellited ST6 Face Seat &
Gate is offered for high-pressure and high-temperature applications. Options for
forged gate valves include threaded end, socket weld end, butt weld end, and
flanged end connections. Flanges for forged gate valves are welded to the valve
body rather than being integrally forged.
Usage/Application: Water
Size : 4inch (Valve Size)
Material : Forged Steel
Type : Globe Valve
Finishing : Paint Coated
Material of Construction
Body & Bonnet Material
Trims / Working Parts
Gland Packing
Gasket
Bolting
ASTM A 105 – Forged Carbon Steel ASTM A 182 F304/F304L – Forged
Stainless Steel ASTM A 182 F316/F316L – Forged Stainless Steel
ASTM A 182 F11/F22 – Alloy Steel
ASTM A 276 T – 410(SS-410 – 13% Cr. Steel) ASTM A 276 T –
304/304L(SS-304/SS-304L) ASTM A 276 T – 316/316L(SS-316/SS-316L)
Stellited – ST6
PTFE Virgin/Carbon Filled Teflon Grafoil Ring/Graphite Ring
SS 304/316 Spiral Wound with Graphite Filled
ASTM A 193 GR. B7/B8/B8M/A 194 GR. 2H
Design & Testing Standard
Design Standard
Testing Standard
Flange End Standard
End Connection
Operation
API 602 / BS 5352 / ASME B16.34
API 598
ASME B16.5/For Face To Face ASME B16.10
Flanged End to ASME B16.5, 150#/300#/600#(FLANGES WELDED) Screwed – Threaded End to ASME B1.20.1 Socket Weld End to ASME B16.11 Butt Weld End to ASME B16.25
