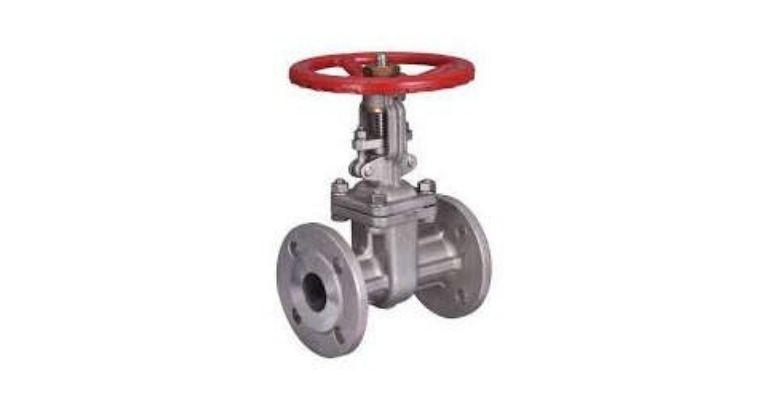

Cast Steel Flanged Gate Valves

Our Cast Steel Flanged Gate Valve is suitable to fit between PN6, PN10/16 or ANSI 150 flanges (subject to configuration) and designed for industrial applications; boiler plants and rugged environments where a more durable valve is required. A handwheel operated manual gate valve with Cast Steel body, bolted bonnet and non rising stem. Cast Steel gate valves are used as efficient shut-off valves with flow in either direction for water, saturated steam, air, gas and oil.

Key features:
Available in sizes: 2" to 8" (PN16), 2" to 10" (ANSI 150) or 2" to 8" (ANSI 300).
Cast Steel body with bolted bonnet.
Temperature range: -29°C to 425°C.
Pressure rating: PN20, Class 150 or Class 300.
